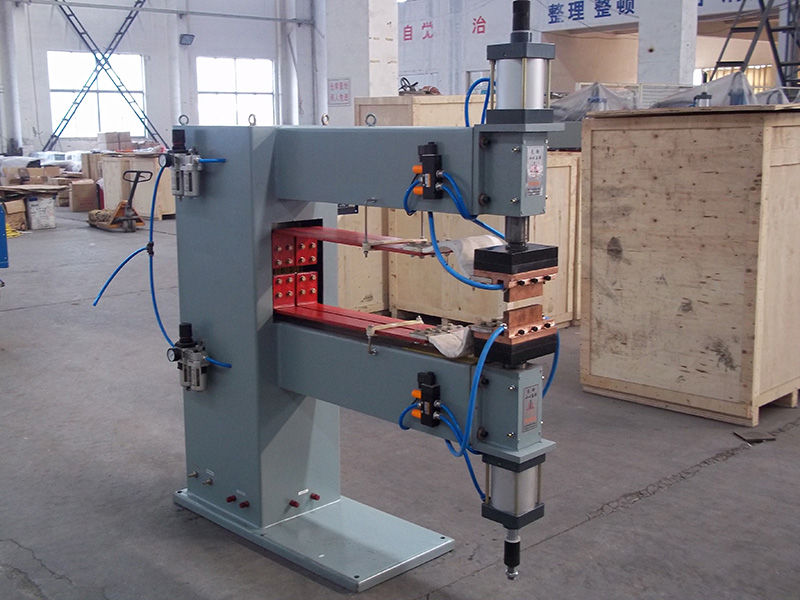

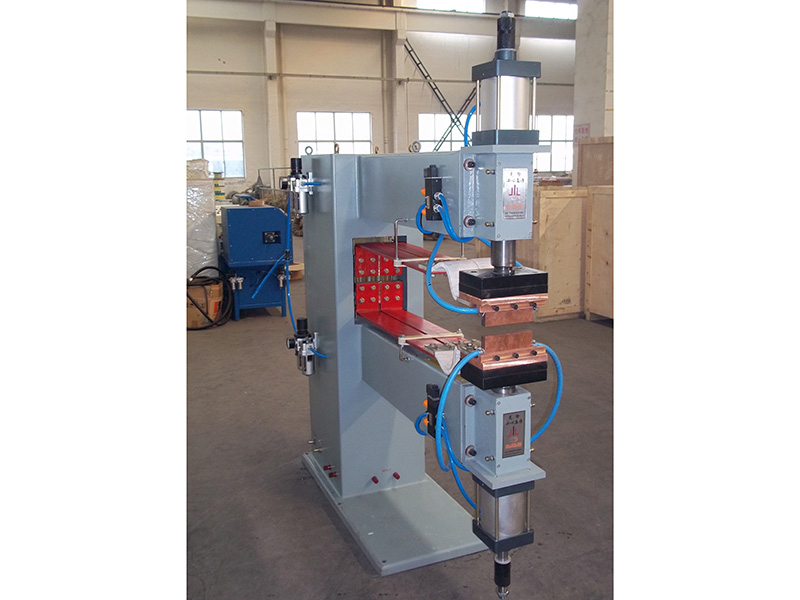

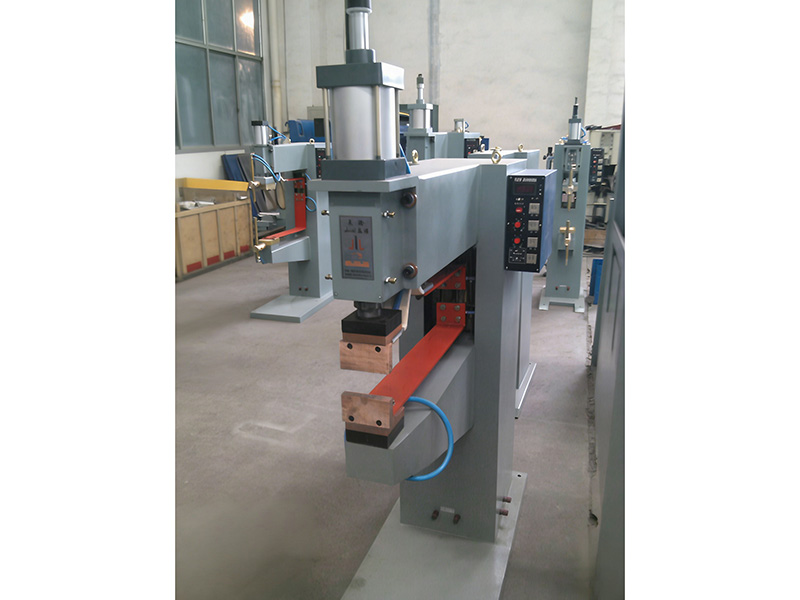

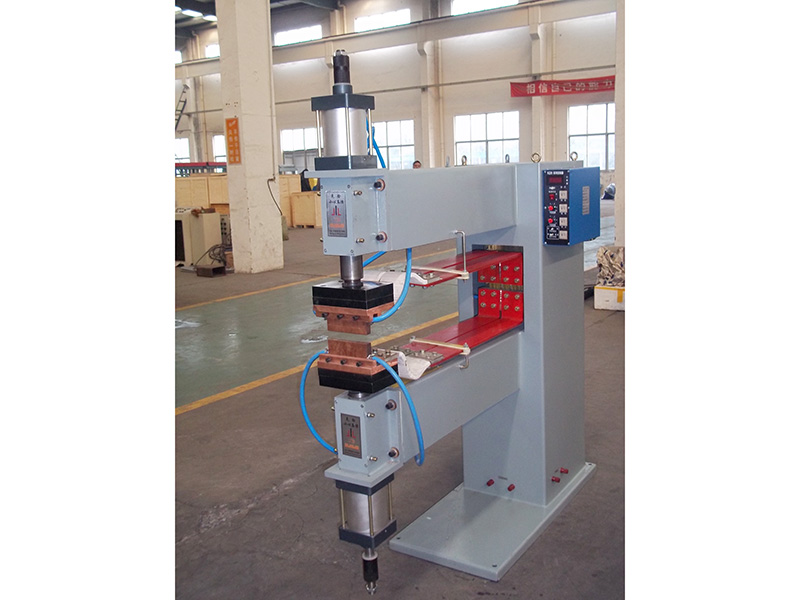

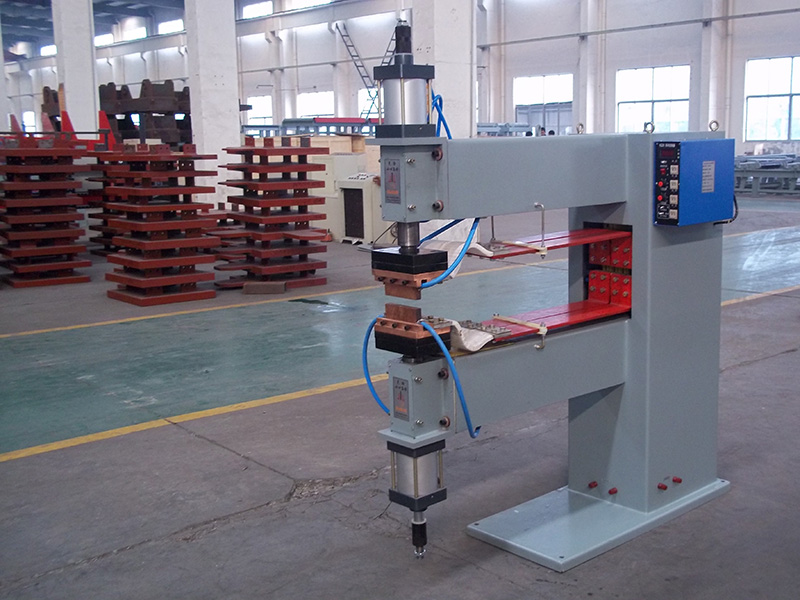

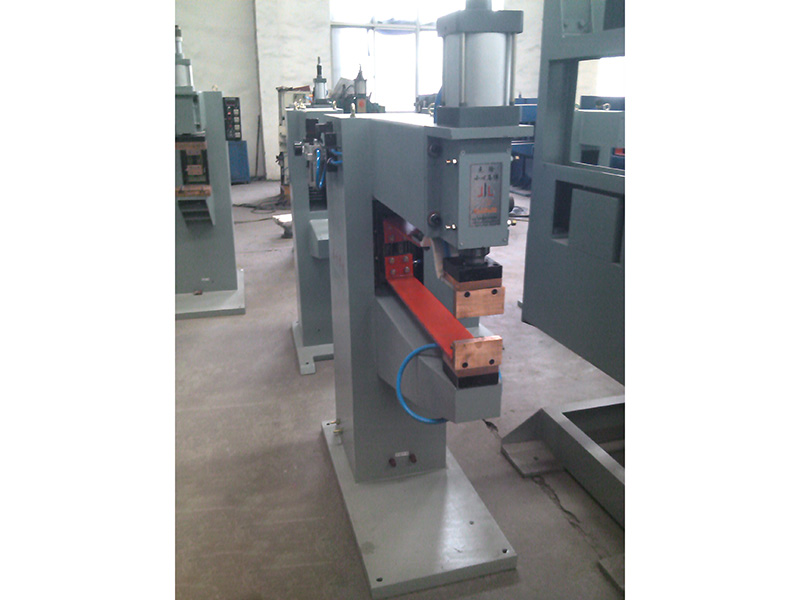

Features of Pneumatic Operated Spot Welding Machine
High-quality cylinders and pneumatic components ensure smooth operation of the pneumatic system.
Combines the advantages of spot welding, enabling large-area multi-point welding with consistent results and high efficiency.
The ideal welding machine for supermarket shelves, highway guardrail mesh, and other specialized applications.
Technical Parameters of Pneumatic Spot Welder
|
Model |
Rated capacity (KVA) |
Input voltage |
Input current (A) |
No-load voltage (V) |
Duty cycle |
Electrode extension distance (mm) |
Welding thickness (mm) |
|
DP-25 |
25 |
Single-phase
380V 50Hz |
65 |
3.5 |
50% |
350 |
0.5+0.5-3+3 |
|
DP-35 |
35 |
92 |
3.8 |
350 |
0.5+0.5-4+4 |
|
DP-50 |
50 |
131 |
5 |
520 |
1+1-4.5+4.5 |
|
DP-75 |
75 |
197 |
6.3 |
560 |
1+1-5+5 |
|
DP-100 |
100 |
263 |
7.6 |
560 |
1.5+1.5-6+6 |
|
DP-150 |
150 |
395 |
8.4 |
560 |
1.5+1.5-7+7 |
Industrial Applications of Pneumatic Spot Welding Machines
Pneumatic spot welders are indispensable across numerous industries due to their precision, efficiency, and reliability:
Automotive Industry
Used for assembling car bodies, frames, and electrical systems.
Welds multiple thin metal sheets quickly, ensuring strong, heat-resistant joints.
Enhances production speed and reduces labor costs.
Electronics Manufacturing
Joins small metal components and wires with high precision.
Ideal for battery pack assembly, especially lithium-ion cells.
Provides consistent weld quality essential for delicate electronic parts.
Aerospace Sector
Ensures lightweight yet strong welds for aircraft components.
Handles complex shapes and intricate parts with high pressure.
Maintains safety standards while reducing overall metal weight.
Home Appliances
Joins thin metal layers used in refrigerators, washing machines, and other appliances.
Provides durable welds critical for appliance longevity and performance.
Metal Fabrication
Facilitates fast and sturdy welds in commercial products like signs, shelves, and tools.
Supports high-volume production with consistent quality.
