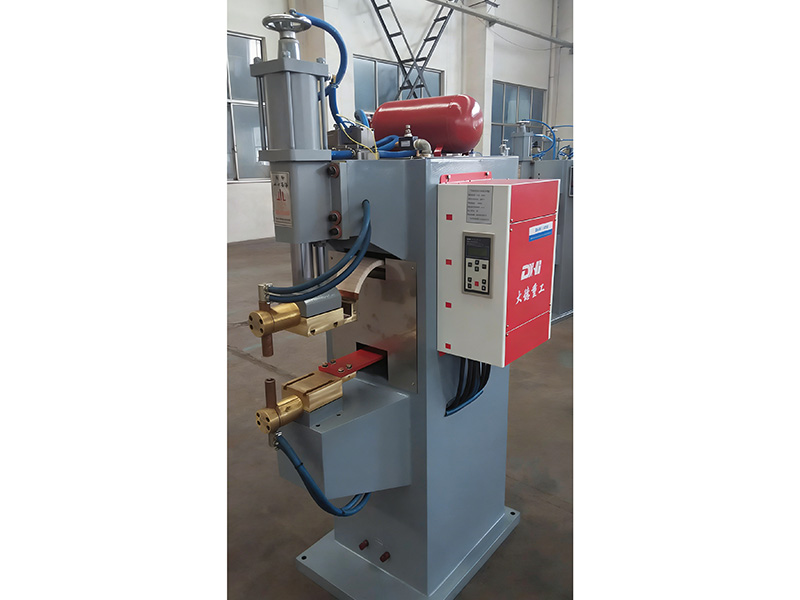

Details of Medium Frequency DC Spot Welding Machine
Medium frequency resistance welding system composition:
● The complete welding system consists of a controller, a medium frequency transformer, and the workpiece. The controller includes multiple components: power drive, rectifier module, capacitor board, IGBT, and central control unit.
Key features:
● Output power frequency: 1 kHz, with time precision at the millisecond (ms) level.
● Programmable with up to 64 welding parameter sets.
● Three-stage heating process: preheat, welding, and tempering. The welding stage allows user-defined increasing and decreasing segments.
● Programmable pressure control, supporting up to 10 pressure segments.
● Programmable I/O ports: Configurable 3-stage output for better compatibility with PLCs, robots, and other automation systems.
● Weld point counting function.
● Dual guide columns, adjustable retraction cylinder, and air storage tank.
● Strong weld points, minimal spatter, and aesthetically pleasing weld formation.
Maintenance Tips for Pneumatic Spot Welding Machines
To maximize the lifespan and performance of your pneumatic spot welding machine, consider these maintenance practices:
Regularly clean electrodes to prevent contamination and ensure consistent conductivity.
Lubricate pneumatic components like cylinders and valves to avoid wear and tear.
Inspect and replace worn or damaged parts promptly.
Ensure the air supply is dry and free from contaminants to prevent pneumatic system failures.
Calibrate control systems periodically for accurate pressure and current settings.
Frequently Asked Questions (FAQs)
Q1: How do pneumatic spot welders operate?
A1: They apply compressed air pressure to hold metal pieces together while an electric current passes through, generating heat and creating a weld at the contact spot.
Q2: Can pneumatic spot welders be used outdoors?
A2: Yes, they are suitable for outdoor operations as pneumatic pressure systems function well even in adverse weather conditions, provided there is a compressed air supply.
Q3: What metals can pneumatic spot welders handle?
A3: They weld thin sheets of steel, stainless steel, aluminum, and other metals with low thermal conductivity effectively.
Q4: Are pneumatic spot welders energy efficient?
A4: Modern pneumatic spot welders incorporate energy-saving features such as adjustable power settings and efficient pneumatic systems, reducing overall consumption.
Q5: What safety features are included?
A5: Safety mechanisms include automatic shut-offs, pressure gauges, protective enclosures, and ergonomic designs to safeguard operators.
