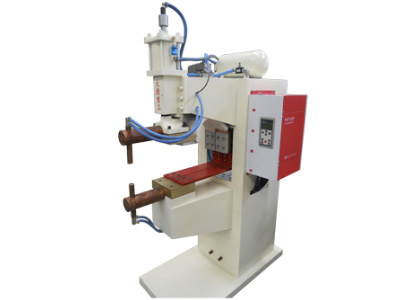

Most resistance welding machines run on 380-415 V three-phase supply, and their contactors are rated accordingly. But some welding circuits step up, rectify, or store energy at higher voltages, and those machines need contactors with higher voltage ratings, better insulation, and stricter safety interlocks. This article explains when a high voltage contactor is required for resistance welding and what changes when you move up the voltage scale.







In industrial practice, "high voltage" usually means above 1 kV, and most welding machines never see that. What the term means on a welding machine is a contactor rated for the upper end of low voltage, 690 V, or for medium voltage in the kilovolt range where capacitor banks and special welding power supplies operate. A 690 V-rated contactor is a different product from a 400 V-rated one, even though it looks similar: insulation distances, creepage paths, and interrupting capability are all upgraded.



Capacitor discharge welders are the common case. The capacitor bank stores energy at several hundred volts, sometimes over 1 kV, and the discharge path has to be switched and isolated with components rated for that voltage and for the discharge transient.







Voltage rating is not about the steady state alone. It is about the transient. When a contactor opens an inductive or capacitive circuit, the voltage across the opening contacts can rise well above the supply voltage. If the contactor's insulation and interrupting rating are too low, the arc re-strikes, the contacts erode, and in the worst case the unit flashes over internally.





Insulation. Larger creepage and clearance distances between poles and to earth, with insulation materials rated for the working voltage.

Interrupting capability. The vacuum interrupter must extinguish the arc at the worst-case recovery voltage, not just at the nominal supply.

Dielectric withstand. The unit is tested to hold off test voltages above its working voltage, per its insulation class.







Vacuum is the natural fit here. Vacuum interrupters were developed for medium-voltage distribution, and a contactor built around them inherits that capability: fast arc extinction, high dielectric strength, and long life. The interrupter size grows with voltage and current, the mechanism stays compact, and the sealed design keeps the high-voltage parts protected from dust and moisture, which is exactly what a welding shop environment demands.









Interlocking. The contactor enclosure must interlock with access doors, so the circuit cannot be energized with the enclosure open.

Earthing. The frame and enclosure are solidly earthed, and the welding circuit is checked for earth continuity before operation.

Disconnect and lockout. A visible, lockable disconnector upstream of the contactor, so maintenance can be done on a proven-dead circuit.

Discharge path. On capacitor discharge machines, a bleed resistor or discharge circuit drains the bank, and the interlock verifies zero voltage before the cover opens.







Contactors for welding equipment follow the same standards as other low-voltage switchgear: IEC 60947-4-1 covers contactors and motor-starters, including the utilization categories and electrical life tests. For higher-voltage and medium-voltage products, IEC 62271 series and the national equivalents apply. Insulation ratings follow the overvoltage category of the installation. When you specify a contactor for a welding machine above 400 V, ask the supplier for the standard it is tested to and the dielectric test values.







Choose a high voltage contactor when the machine actually works above the standard low-voltage range: capacitor discharge welders with higher-voltage banks, welding power supplies with rectified and boosted DC links, or machines fed from 660-690 V supplies common in some heavy industry sites. Do not overspecify a standard 400 V machine; the extra insulation buys nothing there. But when the circuit is above 400 V, using a 690 V or medium-voltage rated contactor is not optional, it is the difference between reliable switching and repeated contact failure.





A high voltage contactor for resistance welding is specified by circuit voltage, interrupting duty and insulation class, with safety interlocks designed around the stored energy in the circuit. Sizing it from the actual working and transient voltage, and confirming the standard it is tested to, keeps the welding circuit reliable and the maintenance crew safe. Dade Heavy Industry builds resistance welding machines and automated welding systems, and can specify the switching components for the voltage level of your process.
