Resistance welding is a brutal duty for any switching device. A spot welder makes and breaks its welding circuit hundreds of times an hour, every hour, and each operation interrupts a heavy inductive current. That is why vacuum contactors have become the standard choice for resistance welding machines: they switch reliably, wear slowly, and need almost no maintenance. This article explains what a vacuum contactor does in a resistance welding circuit and how to size one correctly.

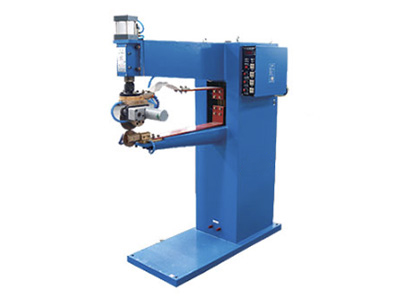

A resistance welding machine steps mains voltage down to a few volts and steps the current up to thousands of amps at the electrodes. The switching device sits on the primary side of the welding transformer, where it opens and closes the circuit that feeds the transformer. Every weld cycle means one close and one open operation, and the open operation interrupts the magnetizing current of a transformer with an inductive load behind it.



Multiply that by a welding rate of 60 to 120 spots per minute and the contactor works millions of operations in a year. An ordinary air contactor wears its contacts, chatters under vibration, and eventually fails. The duty calls for a device built for frequent switching.







A vacuum contactor is an electromagnetic contactor whose contacts sit inside a sealed vacuum interrupter. The moving contact and fixed contact are enclosed in a glass or ceramic chamber pumped down to a high vacuum. When the contacts part, the arc that forms between them is extinguished almost instantly, because there is almost no gas in the chamber to sustain ionization.



That is the whole trick. Vacuum is an excellent arc-quenching medium, which is why vacuum interrupters dominate medium-voltage switching. In a resistance welding machine, the same principle gives a contactor that breaks the circuit cleanly on every operation, with no arc chutes, no oil, and no exposed arcing.







Contact life. Vacuum contacts last far longer than air contacts under frequent switching, because each break erodes the contacts much less.

Maintenance. Air contactors need regular inspection, cleaning and contact replacement. Vacuum contactors are effectively sealed and require only periodic checks of the mechanism.

Operation. Vacuum contactors close and open fast and quietly, with no arc flash visible.

Environment. Sealed contacts are immune to dust, moisture and corrosive shop air that attack open contacts.

Cost. A vacuum contactor costs more up front. Against the cost of downtime and contact replacement on an air unit, it usually pays back quickly on a machine that runs continuously.







Rated operational current. The contactor must carry the steady current of the welding circuit continuously. Check this against the transformer primary current, not the electrode current.

Utilization category. For frequent make-and-break duty with inductive loads, the AC-3 or AC-4 category is the relevant one. These categories define how many operations the contactor is rated for at its rated current.

Coil voltage. Match the control voltage of your machine or PLC, commonly 110 V, 220 V or 380 V AC, or 24 V DC in newer controls.

Number of poles. Three-pole units are standard for three-phase input; two-pole versions exist for single-phase machines.

Mechanical and electrical life. Manufacturers rate vacuum contactors for a defined number of operations. Pick one rated for at least your yearly operation count with margin.







Work from the machine nameplate. Find the welding transformer's primary voltage and rated current, then add margin for inrush and for the duty cycle of the machine. A contactor that is sized exactly at the operating current will run hot and age fast; sizing 20-30 percent above the normal current is common practice on continuous welding duty. Confirm the coil voltage and auxiliary contacts match the control circuit, and verify the enclosure rating suits the shop environment.







Replacing an air contactor with a vacuum unit is usually straightforward: same mounting footprint options, same coil control interface, same wiring principle. Check the mechanical dimensions, the coil supply, and the auxiliary contacts used by the control circuit for interlocks and indication. A retrofit can often be done in a single maintenance window.







A vacuum contactor for resistance welding buys reliability where it matters most: millions of operations without contact failure. Size it from the transformer primary current with margin, match the coil and poles to the control circuit, and it will outlast the machine's other wearing parts. Dade Heavy Industry supplies resistance welding machines and their control components, and can specify vacuum contactors matched to your welding duty.
