Resistance Welding Machine Contactor: Sizing, Life and Replacement

Inside every resistance welding machine, the contactor works harder than almost any other component. It makes and breaks the welding circuit for every spot, seam and projection weld, and its condition shows up directly in weld quality. This article covers the contactor's job, how to size it, how long it lasts, and when to replace it.

The Contactor's Job in a Resistance Welding Machine

A resistance welding machine passes current through the workpieces between two electrodes, heating the interface until the metal fuses. The current path starts at the supply, passes through the welding transformer, and reaches the electrodes. The contactor sits in that path, on the primary side of the transformer, and it has two jobs: connect the transformer when a weld is commanded, and disconnect it when the weld is done.

The welding controller times the current, but the contactor is the muscle. In machines that also use thyristor stacks for current modulation, the contactor handles the coarse switching and isolation while the thyristors shape the weld pulse. In simpler machines, the contactor does the full switching duty.

The Duty Cycle Reality

The nameplate current rating is not the whole story. What wears a contactor is the operation count and the inrush:

A spot welding machine at 60 spots per minute, running two shifts, makes roughly 50,000 operations per day and over 10 million per year.

Every close energizes a transformer, drawing an inrush several times the steady current.

Every open interrupts the transformer's inductive magnetizing current, drawing an arc that the contacts have to extinguish.

An air contactor under this duty wears its contacts visibly and needs regular dressing and replacement. This is the classic reason resistance welding machine contactors fail at the worst moment: in the middle of a production run.

Sizing the Contactor

Size from the transformer primary, not the electrode current. The primary current is the transformer's kVA divided by the supply voltage, and it is the current the contactor actually carries. Add margin for the duty cycle and the inrush:

Rated operational current at least 20-30 percent above the normal primary current.

Utilization category AC-3 or AC-4, with the electrical life rating matched to your yearly operation count.

Coil voltage matching the machine control, usually 110 V, 220 V or 380 V AC, or 24 V DC.

Number of poles matching the supply: three for three-phase, two for single-phase machines.

Check the contactor's rated life in operations at its rated current. A unit rated for one million operations at full current will last about a year on a two-shift spot welding machine; a unit rated for several million lasts years. The rating difference is the real price difference.

SCR vs. Contactor

Modern precision welding machines often use thyristor (SCR) stacks to control weld current with accuracy that no contactor can match. The contactor is not obsolete: it still provides the input switching, the isolation between welds, and the safety disconnect inside the panel. The practical combination is thyristors for current control plus a vacuum contactor for the coarse duty. Trying to make a contactor do precise current modulation, or making a thyristor do the isolation duty, is using each component outside its strength.

Wear Signs and Failure Modes

Watch for these on a resistance welding machine contactor:

Inconsistent welds. As contacts erode, contact resistance climbs and the weld current drifts. A machine that starts making variable welds with the same schedule should be checked at the contactor first.

Overheating. A hot contactor enclosure means contact erosion, loose connections, or oversizing problems.

Chatter or failure to pull in. Coil circuit problems or mechanism wear.

Welded contacts. The contacts fail to open; the transformer stays energized. Vacuum contactors are far less prone to this than air units.

Replacement and Retrofit

Replacing the contactor on a resistance welding machine is a routine job: isolate and lock out the supply, discharge any capacitors, replace the unit, re-torque the power connections, and verify the coil and auxiliary wiring against the control drawing. Retrofitting an air contactor to a vacuum unit follows the same steps, with the bonus that the vacuum unit needs no contact dressing for the rest of its life. Keep the spare-parts philosophy simple: one spare contactor on the shelf costs less than a stalled production line.

Bottom Line

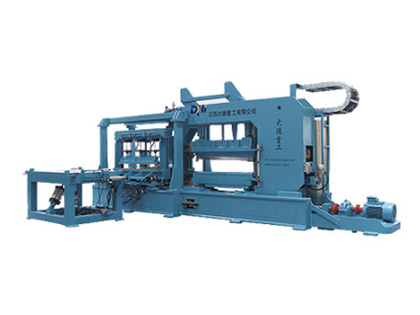

The resistance welding machine contactor is a wearing part with a defined life, and it should be chosen and replaced like one. Size it with margin, match the coil to the control, and count its operations against its rated life. Dade Heavy Industry supplies resistance welding machines with contactor and thyristor switching, and can advise on contactor sizing for spot, seam and projection welding duty.
