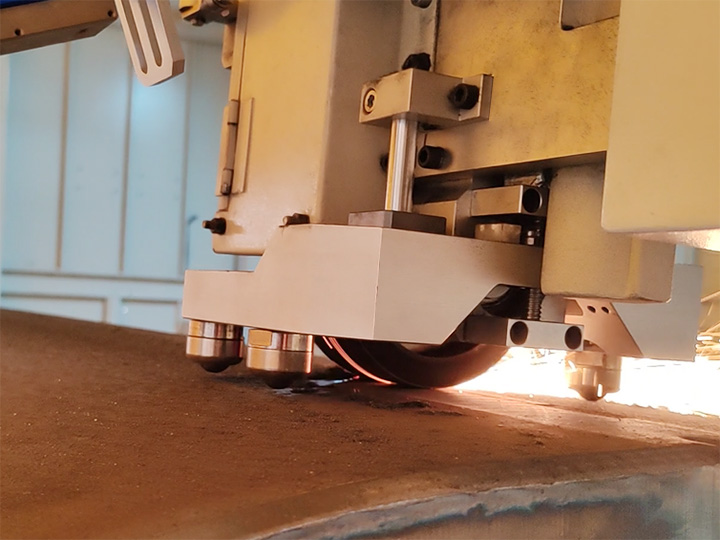

What Is a Welding Robot TCP?
The tool center point is the coordinate location and orientation that the robot controller uses to position the welding tool. For gas metal arc welding, the active point is normally defined at the end of the electrode at a specified stickout. For laser welding, the relevant point may be the focal location or another calibrated process point relative to the focusing head.
A complete tool definition includes X, Y, and Z position relative to the robot flange plus rotational orientation. Position affects where the process lands. Orientation affects work angle, travel angle, torch clearance, wire direction, and coordinated motion.
TCP error is systematic. Unlike random part variation, it can move many welds in a consistent but orientation-dependent way.
What Symptoms Indicate TCP Error?
TCP error should be suspected when weld position changes with robot orientation even though the fixture and part remain stable. The same program may appear correct on one side of a component and offset on another.
Common symptoms include:
Touch-ups required after a torch-neck or contact-tip change.
Path error that reverses direction when the wrist rotates.
Correct joint location at one positioner angle but not another.
Unexpected torch-angle variation along an offline-generated path.
Seam searches returning different offsets after maintenance.
Nozzle or sensor clearance becoming inconsistent.
A reorientation that causes the electrode tip to sweep around the intended point.
Do not diagnose TCP from one weld alone. Fixture movement, part error, wire cast, robot mastering, and work-object calibration can produce similar symptoms.
What Causes TCP to Change?
TCP changes when the physical relationship between the robot flange and active process point changes. Some causes are gradual; others occur instantly.
Typical causes include torch collision, a bent neck or bracket, incorrectly seated quick-change components, contact-tip length variation, loose consumables, sensor-bracket adjustment, wrist service, robot mastering loss, and thermal movement in lightweight tooling.
Cable forces can also move a compliant torch mount differently at different robot postures. The measured TCP may be correct in the calibration pose but shift under cable load elsewhere in the cell.
How Does the Multi-Point TCP Method Work?
The multi-point method calculates the TCP by bringing the tool tip to the same fixed reference point from several orientations. The controller uses the recorded robot poses to solve for the point relative to the flange.
A reliable procedure is:
Install the exact torch, neck, contact tip, and wire setup used for production.
Use a rigid, sharp reference point protected from accidental movement.
Approach the reference from widely different wrist orientations.
Keep the physical tip at the same location for every recorded pose.
Use more poses than the minimum when the controller supports it.
Review the calculated residual or fit error.
Save the tool under controlled naming and revision rules.
If all poses are too similar, the calculation may be weak even when the operator touches the point carefully. Orientation diversity improves the geometric solution.
How Is Tool Orientation Calibrated?
Tool orientation must be defined separately or confirmed by a procedure that solves both position and axes. A correct tip location with an incorrect orientation can still produce wrong torch angles and unexpected motion.
Depending on the controller, orientation may be established by aligning the torch with a known line, plane, or reference frame. The tool’s approach axis and secondary direction should match the programming convention used by welding and simulation teams.
After calibration, command a pure rotation around the TCP. The physical electrode tip should remain nearly stationary while the torch body rotates around it. A visible circular sweep indicates position error, orientation error, or both.
Which Calibration Tools Improve Repeatability?
Dedicated calibration devices improve repeatability by replacing subjective visual alignment with controlled measurement. Options range from simple artifacts to automated laser systems.
|
Method |
Strength |
Limitation |
|
Fixed sharp point |
Low cost and easy to understand |
Operator-dependent and vulnerable to damage |
|
Gauge block or socket |
Repeatable mechanical seating |
Requires access and correct approach geometry |
|
Electrical contact device |
Clear trigger and controller integration |
Needs conductive, clean contact conditions |
|
Laser TCP station |
Fast automatic checks and trend data |
Higher cost and requires its own verification |
|
External metrology |
High-value diagnostic capability |
More setup, skill, and measurement time |
An automated station is especially useful in cells with frequent consumable changes, crash risk, multiple tools, or unattended production. It should distinguish a small correctable offset from a large change that indicates hardware damage.
How Accurate Does the TCP Need to Be?
Required TCP accuracy is determined by the complete welding process window, not by a universal robot value. A large fillet weld may tolerate more aim error than a narrow groove or laser seam.
Create an error budget that includes robot path performance, TCP uncertainty, work-object uncertainty, fixture repeatability, part tolerance, wire behavior, sensor accuracy, and thermal movement. Combined variation must remain within joint and procedure limits.
If the process window is narrower than achievable open-loop accuracy, improve fixture control, add seam sensing, change the joint design, or choose a more tolerant process. Calibration alone cannot remove every source of variation.
How Should TCP Verification Be Performed?
Verification should test the tool independently from the calibration calculation. Repeating the same method with the same mistake may confirm an incorrect result.
A practical verification plan includes:
Return to the reference point from orientations not used during calibration.
Rotate around the TCP and observe tip movement.
Check a second known feature in the fixture.
Run a dry path above a reference coupon.
Compare seam-search offsets with the approved baseline.
Confirm results at several robot and positioner postures.
Record deviation, tool number, torch configuration, date, technician, and reason for the check. Trend records can identify a mount or cable package that gradually loses stability.
How Often Should a Welding Robot Be Calibrated?
Calibration frequency should be risk-based and supported by quick verification checks. Recalibrating on a fixed calendar without considering collisions, tool changes, or process risk can waste time while still missing sudden damage.
Verify the TCP after any suspected collision; after torch, sensor, mount, flange, or wrist service; after robot mastering; when unexplained position trends appear; and before critical qualification runs. Routine shift or daily checks may be appropriate for high-risk cells.
ISO 17662 provides guidance for calibration, verification, and validation of equipment used for welding. The site’s quality system should define required checks, acceptance criteria, and action after failure.
How Can Automatic TCP Correction Be Controlled?
Automatic correction should operate within small validated limits and should not hide mechanical damage. A laser station can measure offset and update tool data, but a large change may mean the torch is bent or loose.
Use two thresholds: a correction band for small normal variation and a fault band requiring inspection. Store before-and-after values. Repeated correction in the same direction is a maintenance signal, not proof that the system is healthy.
Calibration devices inside a guarded cell should be positioned and sequenced so measurement cannot create collision or access hazards. Robot integration should follow applicable ISO 10218 requirements and the validated cell risk assessment.
How Does TCP Control Support Dade Welding Automation?
TCP control protects the accuracy of programs, fixtures, seam sensors, and coordinated axes across the life of a welding cell. It should be included in commissioning, documentation, operator training, and preventive maintenance.
JiangSu Dade Heavy Industry supplies robotic welding workstations and other robot application systems. A complete handover should identify tool definitions, calibration artifacts or stations, acceptance tolerances, backup procedures, and recovery steps after a crash or component replacement.
Frequently Asked Questions
Is changing a contact tip enough to change the TCP?
It can be. Tip length, seating, and wire extension affect the active point. Use controlled consumables and verify the production definition after changes that matter to the process window.
Can seam tracking compensate for a bad TCP?
It may correct some positional error, but sensor-to-tool geometry and torch orientation can still be wrong. Calibrate the TCP first, then calibrate and validate the sensing system.
Is robot mastering the same as TCP calibration?
No. Mastering establishes robot joint references. TCP calibration establishes the tool relationship to the flange. Both must be correct.
Why does the weld move only after wrist rotation?
An offset between the declared TCP and physical process point creates a larger path change when the tool rotates. This is a classic TCP-error symptom.
Should operators edit TCP values manually?
Only through a controlled procedure. Unrecorded manual edits can invalidate offline programs, sensor calibration, and process verification.
Conclusion
Welding robot TCP calibration is a foundation of path accuracy. A repeatable method, stable tool assembly, independent verification, recorded baselines, and clear reaction limits prevent small geometric changes from becoming widespread weld defects. The goal is not merely to obtain coordinates; it is to maintain a traceable relationship between the programmed tool and the physical process point.
