Wobble laser welding superimposes a high-frequency beam oscillation on the main travel path. Galvanometer mirrors or another optical steering mechanism move the laser spot in a circle, line, ellipse, figure-eight, or custom pattern while the robot or machine advances along the seam.
A conventional weld concentrates energy near one moving point. Wobble spreads the interaction over a defined width and repeatedly remelts portions of the pool. This can change penetration shape, surface appearance, gas escape, wetting, and the amount of joint variation the process can tolerate.
The technique is also called beam oscillation or beam weaving. It should not be confused with mechanically weaving the complete welding head, which is slower and moves the optics, nozzle, and cable package together.
Beam oscillation changes where and how often energy enters the molten pool. Each location may receive several short heating events rather than one continuous pass, creating complex circulation and solidification behavior.
Wider fusion zone at similar forward travel speed.
Shallower peak penetration for the same average power when energy is distributed broadly.
More uniform wetting at lap edges.
Modified keyhole shape and stability.
Increased opportunity for gas to escape before solidification.
Smoother top-bead appearance in suitable parameter windows.
Reduced sensitivity to small path and gap variation.
These effects are not automatically beneficial. Excessive amplitude can reduce penetration or cause incomplete fusion at the center. Poor frequency selection can create periodic ripples, spatter, or unstable overlap.
Pattern selection determines energy distribution across and along the joint. There is no universal best shape.
The same named pattern can behave differently depending on scan direction, phase, amplitude, and frequency. Parameter records should define the complete waveform, not just state “wobble on.”
How Do Amplitude and Frequency Affect Results?
Amplitude controls the physical scan width, while frequency controls how rapidly the beam repeats the pattern. Their interaction with forward speed determines path overlap and local energy density.
Larger amplitude generally widens the weld but distributes power over more area. Higher frequency creates more oscillation cycles per unit length at the same travel speed. If frequency is too low, the weld can show individual lobes or uneven fusion. If it is very high, scanner capability, spot dynamics, and process response may limit the expected benefit.
A useful development metric is oscillations per millimeter of forward travel:
Oscillations per unit length = Wobble frequency / Travel speed
This ratio does not replace full process development, but it helps compare conditions when speed changes.
Can Wobble Welding Bridge Larger Gaps?
Wobble welding can improve tolerance to small, controlled gaps by widening the molten region and promoting wetting, but it cannot replace correct joint design and fit-up. The allowable gap depends on material thickness, spot size, pattern, filler addition, joint type, and required penetration.
A wide scan may connect both edges while reducing depth. If the gap consumes too much molten volume, the result can be underfill, concavity, edge collapse, or lack of fusion. Thin sheet may be especially sensitive.
Qualify minimum and maximum gap, mismatch, and edge offset using real parts. If filler wire is added, wire position, angle, feed rate, and interaction with the oscillating pool become additional critical variables.
Does Wobble Reduce Porosity and Spatter?
Wobble can reduce porosity or spatter when it stabilizes the keyhole and improves melt-pool flow, but the outcome depends on the defect mechanism. It cannot remove hydrogen introduced by wet or contaminated aluminum, and it cannot compensate for severely unstable shielding gas.
For keyhole-related pores, a suitable pattern may create a wider opening and more stable collapse behavior. For spatter, distributing peak intensity may reduce violent ejection in some applications. However, a poorly selected pattern can increase free-surface movement and make spatter worse.
Identify the defect source first. Compare conventional and wobble trials with consistent cleanliness, fit-up, focus, gas, and inspection. Surface appearance alone is not enough; internal examination may reveal a different result.
Which Materials Benefit from Wobble Laser Welding?
Wobble is useful across several metals when the engineering objective matches its energy-distribution effects. Common development areas include aluminum, stainless steel, carbon steel, copper, battery interconnect materials, and dissimilar-thickness joints.
Reflective materials such as aluminum and copper still require an appropriate laser wavelength, power density, optics, and surface condition. Wobble does not eliminate reflectivity. It modifies the interaction after energy reaches the material.
For heat-sensitive assemblies, the wider heat distribution can affect distortion and heat-affected-zone size. For hardenable steels, changed cooling behavior may affect hardness. Metallurgical testing should follow the product risk and material system.
How Should a Wobble Process Be Developed?
Develop the process by mapping a stable region across realistic production variation, not by optimizing one visually attractive coupon. Start with the required penetration, width, strength, appearance, and cycle time.
Control and record:
Laser power and delivery stability.
Forward travel speed.
Focus position and spot size.
Pattern shape and orientation.
Oscillation amplitude and frequency.
Joint gap, mismatch, and edge condition.
Filler-wire conditions where used.
Shielding gas composition, flow, and nozzle position.
Fixture restraint and heat accumulation.
Material grade, temper, coating, and cleanliness.
Use cross-sections, mechanical testing, leak testing, electrical testing, or nondestructive examination according to the component. A design of experiments can reveal interactions that one-factor trials miss.
How Is Wobble Integrated with Robot Motion?
The scanner, laser, robot, seam sensor, and PLC must share a synchronized recipe and fault strategy. The robot defines the global path, while the scanner generates local high-speed motion.
Important integration questions include:
Does the wobble pattern maintain its intended orientation through robot reorientation?
How are pattern ramps handled at starts, corners, and ends?
What happens if scanner feedback, laser power, cooling, or shielding is lost?
Can seam-tracking corrections coexist with the selected scan width?
Are recipe identity and part identity interlocked?
Is scan-head calibration verified after service or collision?

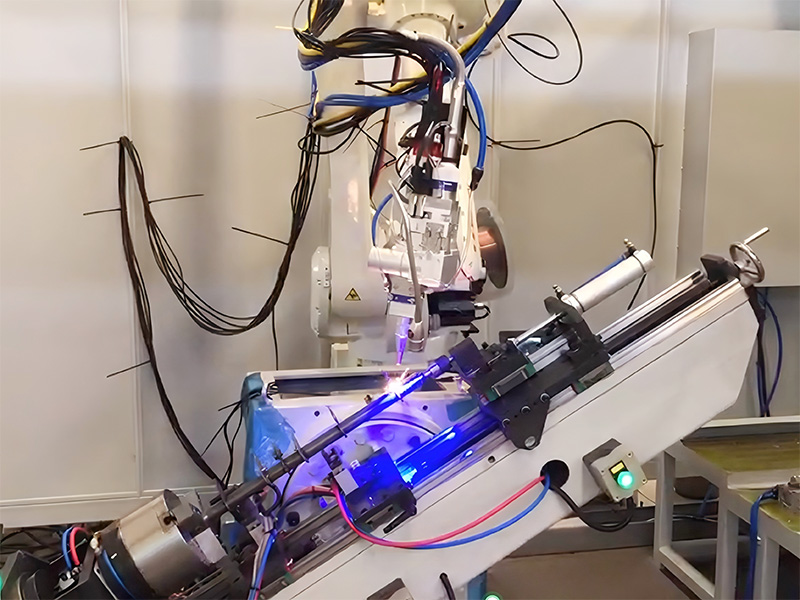

JiangSu Dade Heavy Industry supplies robot laser welding systems. Buyers should treat beam oscillation as a qualified process option within the complete workstation, including optics protection, extraction, guarding, fixturing, sensing, and inspection.
When Should Conventional Laser Welding Be Preferred?
Conventional non-oscillating welding may be better when the joint is precise, narrow penetration is required, and added scan width provides no value. It can also simplify process control, reduce parameter count, and preserve maximum power density.
Choose the method based on validated output. Wobble is valuable when it expands the usable process window or improves a defined quality characteristic. It should not be specified only because it is available on the laser head.
Frequently Asked Questions
Is wobble frequency the same as robot weaving frequency?
No. Optical wobble is generated by fast beam steering inside the head. Robot weaving moves the complete tool and typically operates at a much lower frequency.
Does a larger wobble amplitude always bridge a larger gap?
No. A larger amplitude spreads energy and may reduce penetration or center fusion. Gap tolerance must be verified with the complete parameter set.
Can wobble welding replace filler wire?
Sometimes autogenous wobble welding handles small gaps, but filler may still be required for joint volume, metallurgy, crack resistance, or reinforcement.
Is wobble useful for laser cutting?
Beam shaping and scanning concepts can be used in cutting applications, but welding wobble parameters and objectives do not transfer directly.
How should wobble recipes be protected?
Store pattern, amplitude, frequency, power, focus, speed, and gas as controlled recipe variables with access permissions and backups.
Conclusion
Wobble laser welding is a tool for engineering energy distribution. Properly applied, it can widen fusion, improve wetting, stabilize certain melt-pool behaviors, and expand tolerance to controlled fit-up variation. Its value must be proven through cross-sections, performance tests, and boundary trials. The best pattern is the one that creates a repeatable qualified joint—not the most complex path available from the scanner.
